Porsche 944 SOUNDSYSTEM Teile

SOUNDSYSTEM

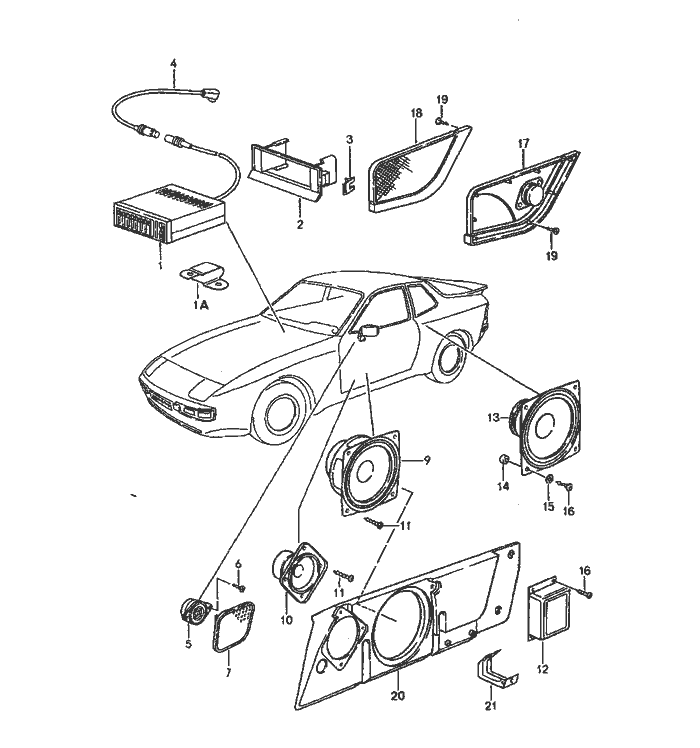

Pos__Part_Number__DescriptionRemarkQty.Model
  SOUNDSYSTEM
1 944 645 417 01equaliser BEA 80   1
(1) 944 645 417 02equaliser BEA 108   1
-944 645 517 00connecting cable for radio equaliser BEA 108   1
1A 944 645 065 00retaining bar for equaliser   1
2 944 645 501 00cover for BEA 80   1
(2) 944 645 501 01cover for BEA 108   1
3 944 645 557 00spring clamp   2
4 944 645 171 00connecting cable   1
5 944 645 427 00tweeter   2
6 N 013 958 7tapping Schraube   4
7 944 645 431 00cover Left 1
 01Cblack
 4RBbrown
 9MMburgundy
(7) 944 645 432 00cover Right 1
 01Cblack
 4RBbrown
 9MMburgundy
9 944 645 429 00woofer   2
10 944 645 419 00mid-range loudspeaker   2

Pos__Part_Number__DescriptionRemarkQty.Model
11 900 143 031 02oval-head sheetmetal Schraube B 4,2 X 9,5   10
12 944 645 437 00diplexer   2
13 944 645 425 00bass loudspeaker   2
14 477 035 375bush   8
15 900 025 002 02washer A 4,3   8
16 N 013 961 2tapping Schraube B 3,9 X 13   8
17 944 645 045 00loudspeaker Left 1
 01Cblack
 4RBbrown
 9MMburgundy
18 944 645 046 00loudspeaker Right 1
 01Cblack
 4RBbrown
 9MMburgundy
19 999 919 032 02oval-head Schraube 3,5 X 10   16
20 944 555 943 00retaining frame Left 1
20 944 555 944 00retaining frame Right 1
21 944 531 243 00retaining bracket for retaining frame   4
